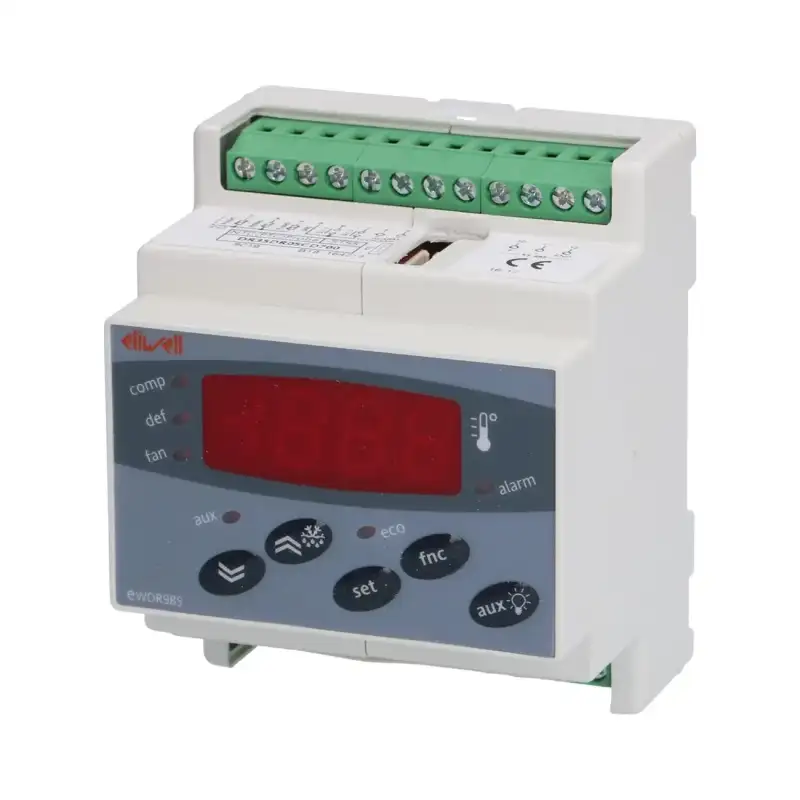

Eliwell EWDR985LX 230 V DIN轨控制器，带RTC和RS-485

The Eliwell EWDR985LX delivers advanced control for refrigeration and HVAC systems in a 4-module DIN-rail package.

Key Features

• Supply Voltage: 230 V 50/60 Hz
• Mounting: 4-module DIN-rail
• Relay Outputs:
  • 1 × 16 A configurable
  • 3 × 8 A configurable
• Alarm Output: 12 V/20 mA
• Digital Inputs: 2 configurable channels
• Probe Inputs: 3 NTC/PTC (not included)
• RTC & Communication: built-in real-time clock and RS-485 serial port
• Dimensions: 70 × 85 × 61 mm

Ideal Applications

Perfect for multi-relay control in commercial refrigeration, HVAC panels and process automation where scheduling, alarms and network connectivity are required.
