20-027-L-1120330
>78,48 € 含增值稅64,86 €不含增值稅
含稅
規格

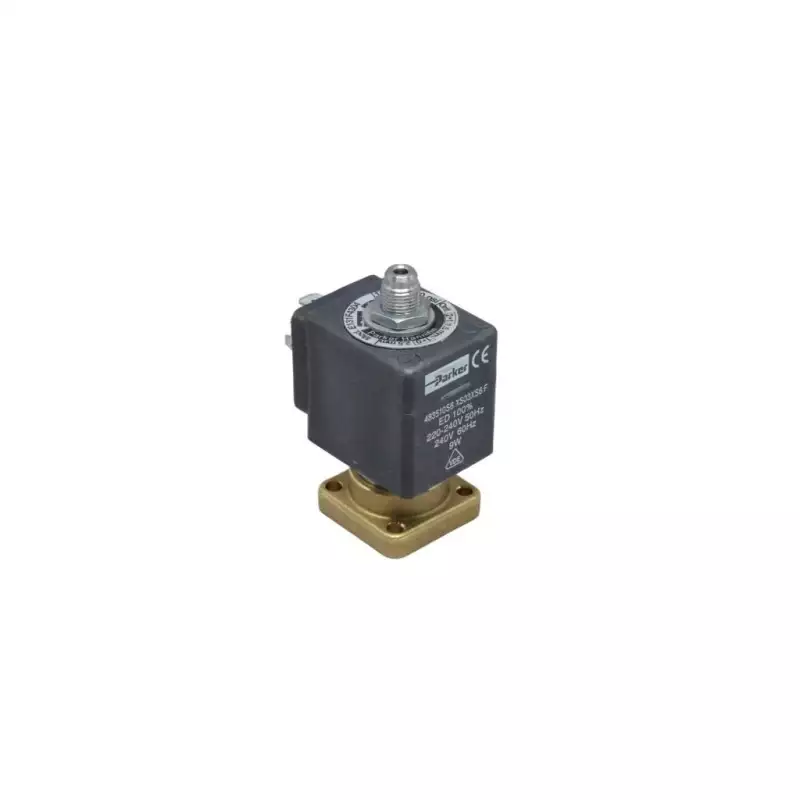

本頁電磁閥為三通電磁閥,主要用作衝煮組電磁閥。 Parker 已將此零件列為 471012 和 471013
該電磁閥上使用的線圈是 9W 220/240V,以 50/60Hz 運行。此電磁閥的線圈編號為 483510S6
所討論的閥門是一個帶法蘭連接的三通電磁閥。這種法蘭連接用 2 個 O 形圈密封在另一個平面上,一個用於入口,另一個用於出口。該閥門內的孔口直徑為 1.5 毫米,並用紅寶石密封。該閥的排氣接口有一個錐形 1/8” BSP-G 接口。
該電磁閥的最大工作壓力為 10 bar。流體的溫度範圍從 -40 攝氏度到 140 攝氏度。
如前所述,這種電磁閥在衝煮組應用中很常見。它可用於以下品牌:Brasilia、Casadio、Cimbali、Conti、Faema、Grimac、Nuova Simonelli、La Pavoni、Promac、Rancilio、San Marco、La Spaziale、Victoria Arduino 和 Wega。
Extra Info
電壓 | 220/240V |
類型部分 | 電磁閥 |
牌 | Casadio, Brugnetti, La San Marco, La Scala, La Cimbali, Faema, Grimac, Astoria, Nuova Simonelli, La Pavoni, Wega, Victoria Arduino, Rancilio, Brasilia |
零件號 | Wega WY18151000, Wega WY18151, Nuova Simonelli 04100017, Victoria Arduino 04100017, Vibiemme ELETELE3VCAB, Spaziale 00628, San remo 10302066, San Marco 108063, Reneka 9008257, promac 34040008, Rancilio 34040008, Isomac 451276, pavoni 451276, Pavoni 451209, Pavoni 451200, Pavoni 0E912101800A, Parker 471013, parker 471012, Parker 397443, Parker 397442, parker 393395J, parker 393134J, Parker 393112J, Parker 393107J, Nuova Simonelli 04100038, Nuova Simonelli 04100027, Gaggia WGADM0647, Gaggia DM0647/S, Fiorenzato A1900003, Faema 533894500R, Faema 533795910, Faema 533795610, Faema 533795610R, Faema 533795510, Faema 533795510R, Faema 533795500, Faema 2445119275, Faema 2441119275, Faema 2441-119275, ECM C100001891, Conti 407239, Cimbali 533795610, Cimbali 533795600, Cimbali 533-894-600R, Cimbali 533-894-500R, Cimbali 533-795-910, Cimbali 533-795-610R, Cimbali 533-795-610, Cimbali 533-795-600, Cimbali 533-795-510, Cimbali 533-795-510R, Cimbali 533-795-500, Cimbali 530595300, Cimbali 530-595-300, Casadio 533795610, Casadio 533795610R, Carimali 95.01177, Carimali 95.01176, Carimali 92.01177, Aurora Brugnetti 000191, Brasilia 09519.2.00.08, Brasilia 01947.4.00.08, Bezzera 7702211, Bezzera 7702204, Astoria 18162002, Astoria 18162, Astoria 18161996, Astoria 18161, Astoria 18157, astoria 18153 |
孔徑 ø | 1.5mm |
製造國 | Made in Italy |
