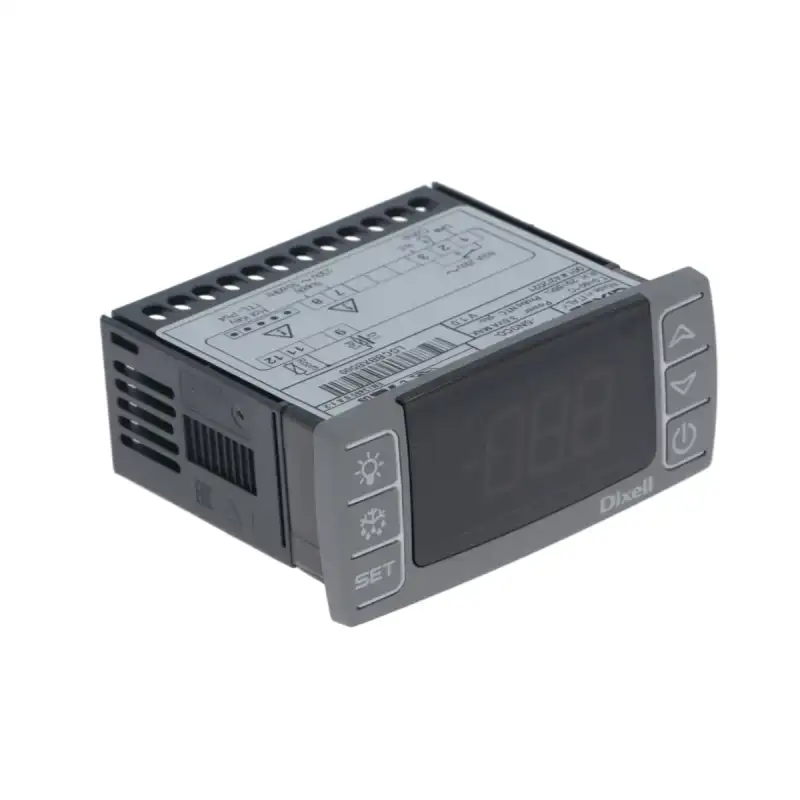

Controller DIXELL XR20CX‑5N0C0

The CONTROLLER DIXELL XR20CX‑5N0C0 from Brooks‑Parts is engineered for precision and reliability in commercial refrigeration and HVAC systems. Operating at 230V 50/60Hz, this digital controller features on‑off control with one intervention point, ensuring effective system management.

Key Features

• Power & Operation:
  • Operates at 230V 50/60Hz
  • ON‑OFF control with one intervention point
• Relay Output:
  • 1 relay output at 8A for compressor control
• Input Options:
  • 1 configurable digital input (clean contact)
  • Selectable NTC/PTC probe input (probe not included)
• Defrosting Functionality:
  • Features pause defrosting for energy efficiency
• Connectivity:
  • Hot Key/TTL serial output for programming and data exchange
• Installation:
  • Frontal dimensions: 78 x 37 x 60 mm
  • Drilling template: 71 x 29 mm
• Product Code:
  • X0LGCBBXB500‑S00

Overview

Upgrade your refrigeration or HVAC system with the CONTROLLER DIXELL XR20CX‑5N0C0 from Brooks‑Parts. With its precise on‑off control, robust relay output, and advanced connectivity options, this controller is the ideal solution for delivering efficient and reliable performance in demanding commercial environments.
