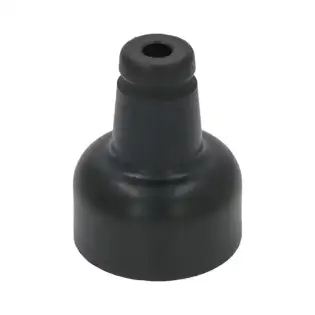

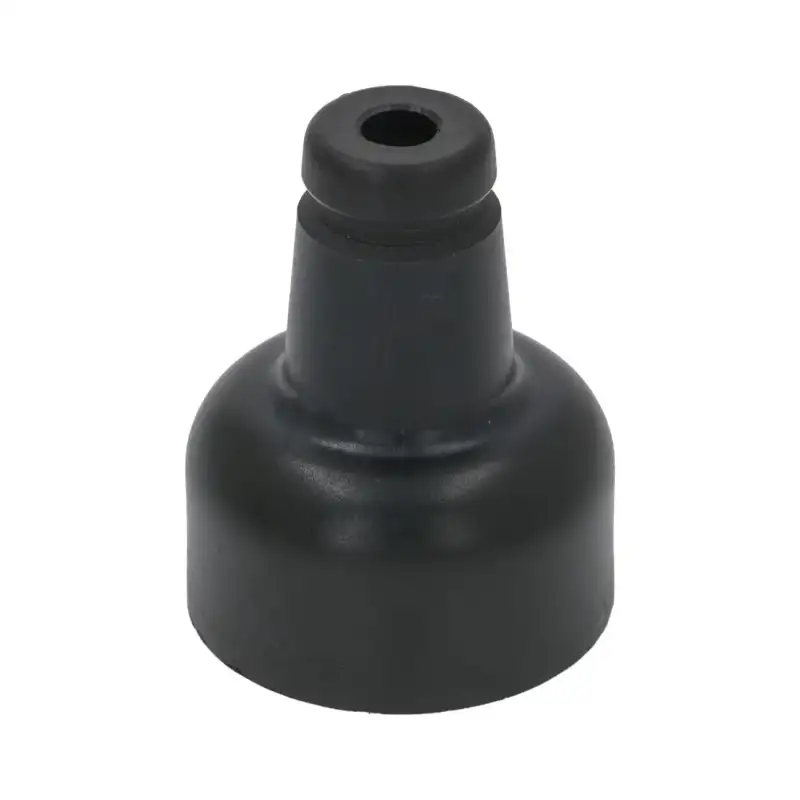

Fimar OEM 36G7010 trommel for blad

The Fimar OEM 36G7010 drum for blade is a genuine drive drum for the cutting blade assembly on Fimar CL-series cutters. It transfers motor torque to the blade carrier, ensuring smooth and stable rotation for chopping, mixing and emulsifying in professional kitchens.

This original Fimar OEM drum has an overall length of 82 mm, an external diameter of 63 mm and a square coupling of 12 x 12 mm for the blade shaft. The distance between the mounting holes is 52 mm, matching the factory fixing points on the cutter base. The part is Made in Italy and is designed as a direct replacement on the Fimar CL cutters listed below. Always compare the OEM reference 36G7010 and all dimensions with your original drum and the Fimar parts diagram before ordering.

Technical features

• Brand / OEM: Fimar OEM 36G7010
• Part type: Drum for blade / drive drum
• Overall length: 82 mm
• External diameter: 63 mm
• Coupling: Square 12 x 12 mm
• Distance between mounting holes: 52 mm
• Application: Drive drum for blade assembly in bowl cutters
• Function: Transmits motor torque to the blade for stable rotation
• Use: Professional Fimar cutters
• Origin: Made in Italy

Compatibility

Fimar – cutter

• CL3
• CL3N
• CL5
• CL5N
• CL8
• CL8N

Always verify the OEM reference 36G7010, the 82 mm length, ø 63 mm drum diameter, 12 x 12 mm square coupling and 52 mm distance between mounting holes with the technical documentation of your machine before ordering.
