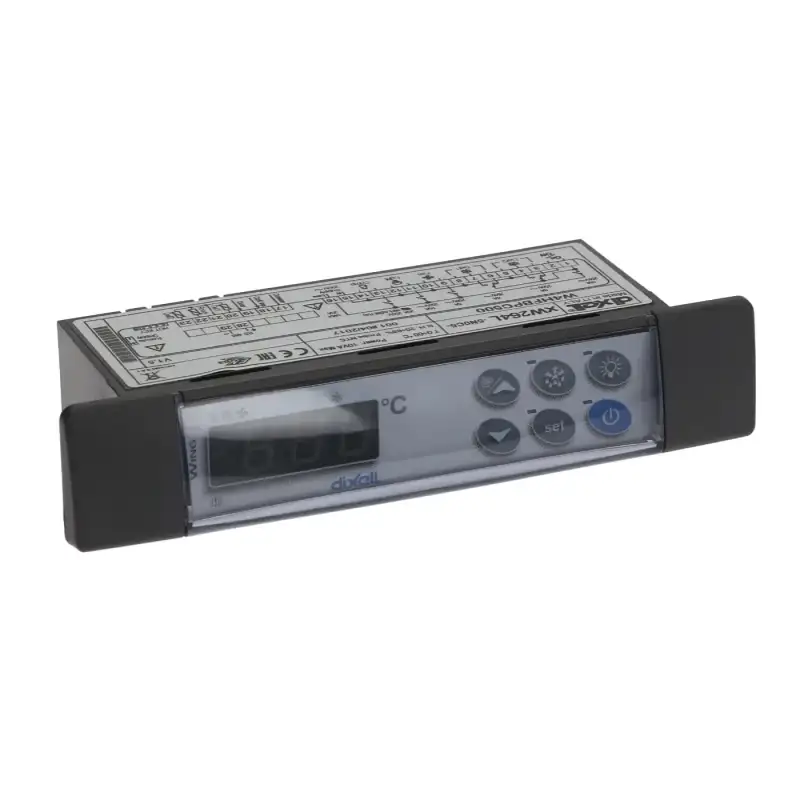

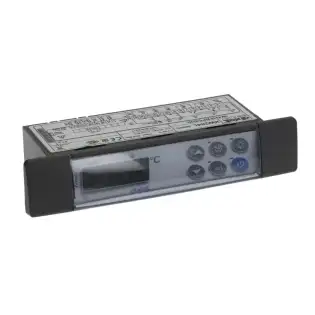

Kontroller DIXELL XW264L-5N0C5

The CONTROLLER DIXELL XW264L‑5N0C5 from Brooks‑Parts is a dependable replacement controller engineered for commercial refrigeration and HVAC systems. It operates at 230V 50/60Hz with a compact depth of 76 mm while delivering precise control through its comprehensive set of features.

Key Features

• Relay Outputs:
  • 1 relay output at 20A for compressor control
  • 2 relay outputs at 8A for defrosting (two separate circuits)
  • 1 relay output at 8A for evaporator fan control
  • 1 relay output at 16A for on/off control
  • 1 relay output at 16A for lighting
• Input Options:
  • Supports 3 NTC/PTC probe inputs (probes not included)
  • 1 digital input for a micro-port
  • 1 configurable digital input (clean contact)
• Connectivity:
  • Hot Key/TTL serial output for remote display and programming
  • TTL RS485 serial output for external communication
• Installation:
  • Front panel dimensions: 185 x 38 mm
  • Drilling template: 150 x 31 mm
  • Overall depth: 76 mm
• Product Codes:
  • W4HFBPC500
  • W4HFBPC500‑S00
  • X0W4HFBPC500‑S00

Overview

Restore your commercial refrigeration or HVAC system’s original control performance with the CONTROLLER DIXELL XW264L‑5N0C5 from Brooks-Parts. With its robust relay outputs, versatile digital inputs, and advanced connectivity, this controller is an ideal replacement solution for maintaining efficient and reliable operation.
