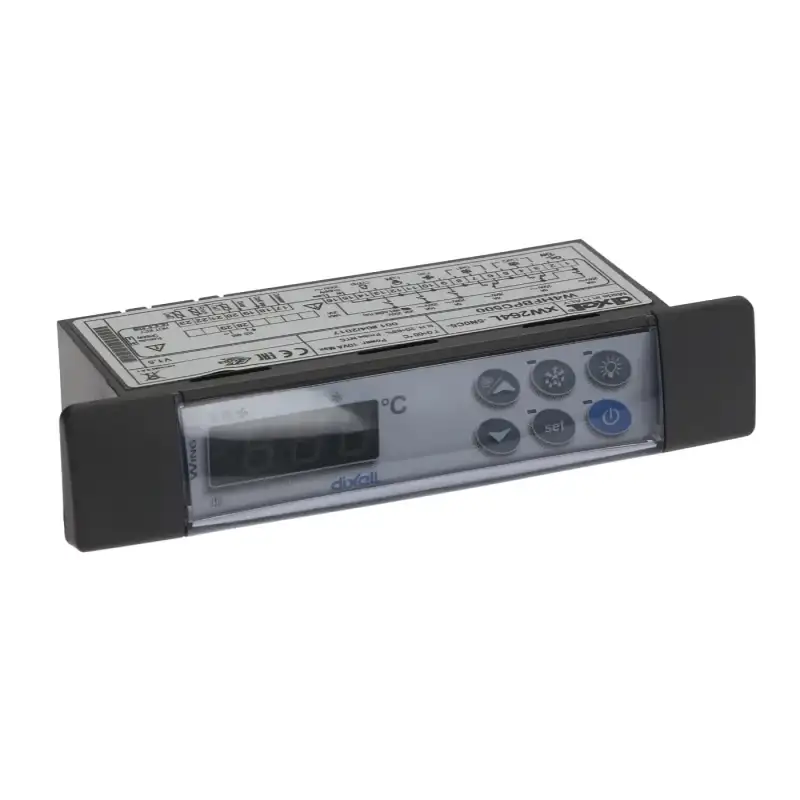

Controller DIXELL XW264L‑5N0C5

The CONTROLLER DIXELL XW264L‑5N0C5 from Brooks‑Parts is a dependable replacement controller engineered for commercial refrigeration and HVAC systems. It operates at 230V 50/60Hz with a compact depth of 76 mm while delivering precise control through its comprehensive set of features.

Key Features

• Relay Outputs:
  • 1 relay output at 20A for compressor control
  • 2 relay outputs at 8A for defrosting (two separate circuits)
  • 1 relay output at 8A for evaporator fan control
  • 1 relay output at 16A for on/off control
  • 1 relay output at 16A for lighting
• Input Options:
  • Supports 3 NTC/PTC probe inputs (probes not included)
  • 1 digital input for a micro‑port
  • 1 configurable digital input (clean contact)
• Connectivity:
  • Hot Key/TTL serial output for remote display and programming
  • TTL RS485 serial output for external communication
• Installation:
  • Front panel dimensions: 185 x 38 mm
  • Drilling template: 150 x 31 mm
  • Overall depth: 76 mm
• Product Codes:
  • W4HFBPC500
  • W4HFBPC500‑S00
  • X0W4HFBPC500‑S00

Overview

Restore your commercial refrigeration or HVAC system’s original control performance with the CONTROLLER DIXELL XW264L‑5N0C5 from Brooks‑Parts. With its robust relay outputs, versatile digital inputs, and advanced connectivity, this controller is an ideal replacement solution for maintaining efficient and reliable operation.
