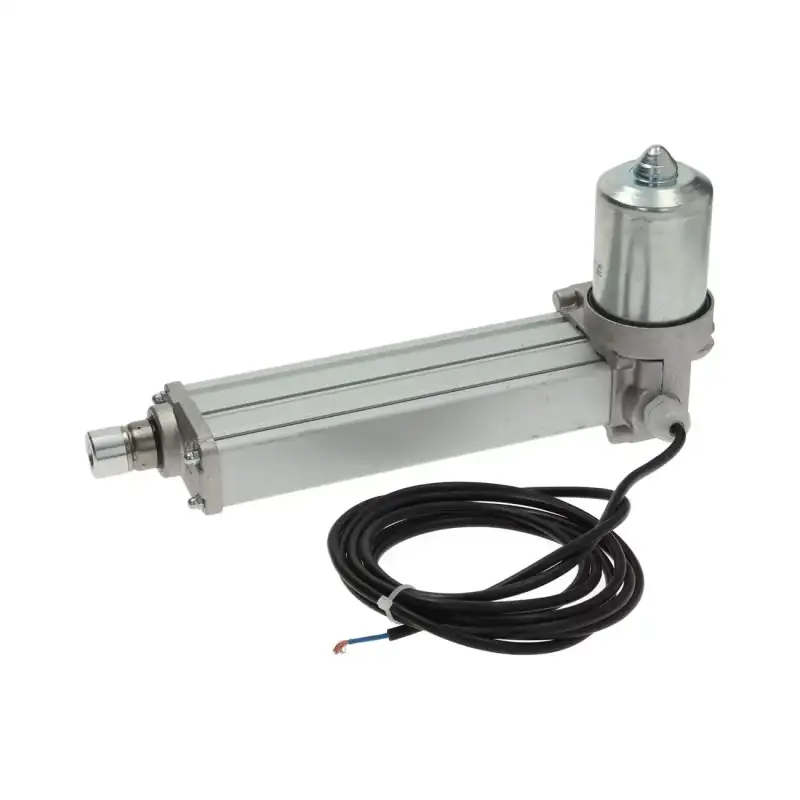

Siłownik liniowy Mareno OEM CR0684360 24VDC.

The Mareno OEM CR0684360 linear actuator 24VDC is a genuine lift actuator for Mareno bratt pans. It controls the tilting of the pan, providing smooth and safe raising and lowering for emptying food and for cleaning in professional HoReCa kitchens.

This original Mareno actuator operates on 24 VDC and delivers a maximum thrust of 5000 N. It is built with a piston stroke of approx. 190 mm and a maximum speed of about 5 mm/s, giving strong lifting performance with controlled, gradual movement. The actuator is designed to fit the original mounting points and stroke on the compatible NBR and ICBR bratt pan models and is Made in Italy. Always compare the OEM code, electrical rating and stroke with your original actuator and the technical documentation of your machine before ordering.

Compatibility

Mareno bratt pan

• ICBR912EIM
• ICBR98EIM
• NBR912EFM
• NBR912EIM
• NBR912GFM
• NBR912GIM
• NBR98EF
• NBR98EF2
• NBR98EFM
• NBR98EI
• NBR98EI2
• NBR98EIM
• NBR98GF
• NBR98GFM
• NBR98GI
• NBR98GIM

Technical features

• Brand / OEM: Mareno OEM CR0684360
• Part type: Linear actuator for tilting bratt pan
• Supply voltage: 24 VDC
• Max force: 5000 N
• Piston stroke: approx. 190 mm
• Max speed: approx. 5 mm/s
• Application: Tilting mechanism on Mareno bratt pans
• Function: Provides controlled lifting and lowering of the pan
• Use: Professional HoReCa bratt pans (NBR / ICBR series)
• Origin: Made in Italy

Always verify the CR0684360 OEM reference, the 24VDC specification, the 5000 N rating and the 190 mm stroke with the technical documentation of your Mareno bratt pan before ordering.

These items are specially ordered and can not be cancelled nor returned.
