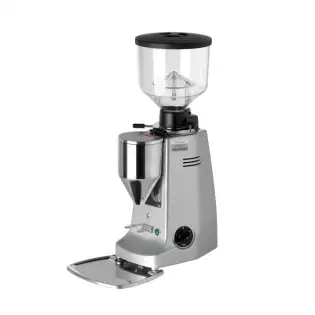

Mazzer 주요 에스프레소 기계는 상업 급료 커피 그라인더의 한개입니다 Mazzer 회사 건축. 이 특정 모델은 Mazzer Major의 전자 "Elettronico"버전입니다. 이 모델은 커피 그라인더에서 앞의 저장 용량과 맞지 않는 것을 의미합니다. 그러나 이것은 " 수요"커피 그라인더입니다.
Mazzer Major 전자는 다양한 구성으로 제작되었으며, 단상에서 최대 220-240V까지 100-115V로 이동할 수 있습니다. 모터의 시작 커패시터가 필요한 3 단계 모터와 비교하여 필요한 것을 의미합니다.
커피 분쇄기 위에 큰 투명 호퍼가 있습니다. 거기에서 커피 콩은 가는 burrs를 향해 먹입니다. 전자 버전에 사용된 burrs는 83mm의 외부 직경과 49mm의 안 직경을 가진 편평한 그들입니다. 거기에서 지상에 놓인 커피는 커피 그라인더의 앞에 깔때기로 철망사 여과기를 향해 갑니다.
이 funnel에는 터치 패널이 설치되어있어이 터치 패널에는 2 개의 사전 설정 (조정 될 수 있음) 용량 설정이 있습니다. 두 배 커피 복용량을 위한 단 하나 그리고 하나를 위해 1개. 이 복용량은 내부 타이머에 근거를 둡니다. 그라인더 뒷면에는 그라인더 안쪽에 커피 그라인더 / 버를 냉각시키는 내부 팬이 있습니다.
Mazzer Major Elettronico에 필요한 구성 요소가 확실하지 않은 경우, 저희에게 연락하고 당신을 도울 수 없습니다.
This sticker is used on a variety of Mazzer coffee grinders. This sticker, which shows what the effects are of turning. If you turn the adjustment ring left is coarse and to the right this will be finer ground. So the space between the burrs to the left becomes bigger and to the right the distance between the burrs becomes smaller. This coarse fine...
How am I going to adjust the grind adjustment on my Mazzer coffee grinder? Well your burrs can be adjusted with the burr adjustment ring (SSJ0GHA02) this pin goes into the side of this ring in one of the 5 mounting holes. This specific adjustment pin screws into one of these 5 holes with a M5 thread. Note: if the ring doesn’t move because it is...
The sticker on this page basically says it all. It’s a Mazzer rotation sticker. The reason why they place this seen there are left and right turning motors. You do have also with a variety of brands where the motor spins the left way, like with Mazzer. But there are also brands which have a right turning motor. The blade design of the burrs for such...
On a variety of Mazzer coffee grinders you can find this grind adjustment spring. So, what does this spring do? Well, this spring supports the upper burr holder. So, when the burrs are set on the finest position, but you want to make them a bit coarser. You turn the grind setting adjustment ring outward. The springs will push the upper burr in its correct...
Almost every Mazzer coffee grinder has 4 individual feet to give it stability in harsh working environments. The feet are made up out of 2 parts. The feet itself. This is a rubber feet with a metal stud sticking out of it. This thread is a M5x0,75mm. The next part is the stainless steel cup which goes over the rubber feet. These feet are only sold per 4...
The switch on this page is a switch used in a variety of Mazzer coffee grinders. The Mazzer part reference for this switch is S000INA13. This selector switch has been made by the Italian company Bremas. The Bremas part references are CA0170002 and CA0170002V. This Bremas switch is rated up to 20A at 690V. The switch has 2 positions 0 and 1. The selector...
The capacitor on this page is a 20µF model. This model is manufactured by the Italian company Ducati Energia. The part reference for this item is 41610.2564. This capacitor can be found on a variety of coffee grinders such as Vibiemme, Mazzer, Fiorenzato C.s. and Macap. This capacitor produces 20µF at 450V 50-60Hz. The max and minimum...
The item on this product page is a hopper lid, this item is a OEM/original Mazzer spare part. This unit is used on various coffee grinders of Mazzer and Astoria. The Mazzer part references numbers for this item are S000COD01, S000COD01/AQQ and SMI0COD01. The Astoria part reference number is 28053. This hopper lid is made from a black plastic and has a...
The coffee collecting tray on this page is used on a variety of Mazzer coffee grinders. This item is a OEM/Original Mazzer spare part. The Mazzer part references for this item are SMJ0PIB02 and SSJ0PIB02. This coffee collecting tray has been made from pressed stainless steel. The tray has been made in Italy. You can use this stainless-steel tray on the...
The coffee hopper on this page is a OEM/Original Mazzer coffee grinder spare part. This hopper can be used on the Electronic models as well as on the Doser models. The item has the Mazzer part references of S000CAE03, S00SCAE03 and S00SCAE07. This coffee hopper is complete. The hopper, lid and the connector for installation on the Mazzer coffee...
The grinder adjustment ring on this product page can be used on a variety of Mazzer coffee grinders. This item is a OEM/Original spare part. The part reference is SMJ0GHA04 and SRO0GHA01 This adjustment ring has been made from casted and machined brass which has been nickel and chrome plated. With this adjustment ring you can set the distance...
The item on this product page is a OEM/Original Mazzer spare part. This item is a portafilter filter holder fork. The Mazzer part references for this item are S000FOB13, S000FOB13/QQQ and SMJ0FOB13. This stainless steel portafilter holder has a length of 66mm. The item has been made in Italy. This portafilter fork holder can only be used on the...
The axial fan on this page is used on various Mazzer coffee grinders. The Mazzer part references for this item are S00SVEB01 and S00SVEB03. This axial fan is the EBM 612NGH. This fan is a 12Vdc 2,6W and runs at 5600rpdm. The outer dimensions are 60x60mm and the thickness is 25mm. This fan has been made in china. You can use this axial fan on the...
