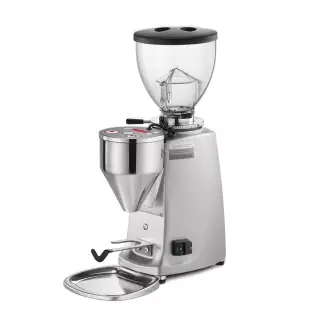

Mazzer 미니 A는 Mazzer 커피 그라인더 브랜드의 가장 유명한 커피 그라인더 중 하나입니다. 이 커피 그라인더는 국내에서 주로 사용됩니다. 그러나 때때로 바 / 레스토랑에서이 그라인더를 볼 수 있습니다.
Mazzer 미니 A는 Mazzer Mini 가족의 3 버전 중 하나입니다. 이것은 수요에 그라인딩 2 중 하나입니다. 그러나 그것은 Mazzer Mini B와 다릅니다.이 분쇄기는 용량 funnel에 커피 선택을위한 터치 패널이 있습니다. 단일 또는 이중 용량을 선택할 수 있습니다. 이 funnel의 밑에 당신은 복용량 조정을 위한 전위차계가 있습니다. 이 위치에 당신은 또한 갈기 동안 당신의 portafilter를 놓을 수있는 portafilter 포크 홀더를 찾을 수 있습니다.
이 커피 그라인더는 시계 방향으로 플랫 그라인더를 사용합니다. 이 숫돌에는 64mm의 외부 직경, 37mm의 내부 직경 및 8,4mm의 간격이 있습니다. 그들은 3개의 나사로 거치됩니다.
Mazzer 미니 A는 선택권 110V와 220/240V에서 단상 커피 그라인더로만 유효합니다. 이 분쇄기는 단상 모형, 모터이고 그 후에 모터 시작 축전기를 요구합니다.
The bipolar switch on this product page can be used on various coffee grinder brands. Such as Cimbali and Mazzer. The part references of these models can be found in the extra info tab. This black bipolar switch has been rated up to 16A at 250V. The switch has a led indicator light when turned on. The mounting hole is 22x30mm. The switch has been made in...
This sticker is used on a variety of Mazzer coffee grinders. This sticker, which shows what the effects are of turning. If you turn the adjustment ring left is coarse and to the right this will be finer ground. So the space between the burrs to the left becomes bigger and to the right the distance between the burrs becomes smaller. This coarse fine...
How am I going to adjust the grind adjustment on my Mazzer coffee grinder? Well your burrs can be adjusted with the burr adjustment ring (SSJ0GHA02) this pin goes into the side of this ring in one of the 5 mounting holes. This specific adjustment pin screws into one of these 5 holes with a M5 thread. Note: if the ring doesn’t move because it is...
The sticker on this page basically says it all. It’s a Mazzer rotation sticker. The reason why they place this seen there are left and right turning motors. You do have also with a variety of brands where the motor spins the left way, like with Mazzer. But there are also brands which have a right turning motor. The blade design of the burrs for such...
On a variety of Mazzer coffee grinders you can find this grind adjustment spring. So, what does this spring do? Well, this spring supports the upper burr holder. So, when the burrs are set on the finest position, but you want to make them a bit coarser. You turn the grind setting adjustment ring outward. The springs will push the upper burr in its correct...
Almost every Mazzer coffee grinder has 4 individual feet to give it stability in harsh working environments. The feet are made up out of 2 parts. The feet itself. This is a rubber feet with a metal stud sticking out of it. This thread is a M5x0,75mm. The next part is the stainless steel cup which goes over the rubber feet. These feet are only sold per 4...
When you are grinding coffee and filling your portafilter with coffee, it will always happen that you spill coffee grounds. That is why there are with most coffee grinders coffee collecting trays. These are normally stainless steel trays, with some brands you see that those are made from a kind of plastic. For the Mazzer Mini they are made from polished...
On this page you will find a kit for the Mazzer Mini Electronic. This specific kit is installed between the grinder housing of the Mazzer Mini and the Funnel. The gasket is there to keep the wire mesh in place. The wire mesh has the dimensions of 36x32mm. this specific mesh is only suitable for 220/240V models of the Mazzer Mini Electronic A and Mazzer...
On this page you will find the funnel used on a Mazzer coffee grinder. This specific model of funnel can be used on a Mazzer mini electronic A or on a Mazzer mini electronic B. The Mini Mazzer A has the product code s000IMB08/QQQ and the mini Mazzer B S000IMB01 The specific funnel has been made from polished stainless steel and the dimensions of the...
On this page you will find a motor cover used on the Mazzer mini. This motor cover plate covers the inside of the motor with the Mazzer electronic models. You can already see the shape in the plate of the funnel which goes in front of the plate. The plate is used on both mini models. The Mazzer mini electronic A and the Mazzer mini electronic B. With the...
What does a portafilter holder fork actually do? Well when you lay your portafilter in the fork it supports itself while the ground coffee comes out of the Mazzer Mini. The portafilter fork holder you find on this page is only suitable for the Mazzer Mini Electronic A and the Mazzer Mini Electronic B. The specific fork holder is made out of stainless...
On this product page you will find a OEM/Original Mazzer mini spare part. The Mazzer part reference for this item is S00SGUA01 and S00SGUA01. This AER stop gasket and wire mesh are suitable for the 220V Mazzer mini models. The wire mesh is 36x32mm. these items have been made in Italy. This wire mesh and gasket can be used on the Mazzer Mini A electronic...
The touchpanel board on this page is a OEM/Original Mazzer spare part. This item is suitable for the Mazzer Mini A electronic. The Mazzer part reference for this item is S000SPU01/A. This touchpanel board is located underneath the membrane. The left key is for single dose, the right key for double dose and the middle one is the push button for manual...
