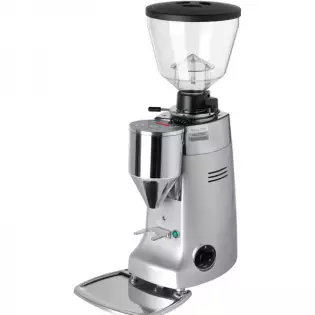

모리셔스 Elettronico는 Mazzer 브랜드의 작업 말 중 하나입니다. 이 커피 그라인더는 어떤 고용량 막대기 또는 대중음식점에서 사용될 수 있습니다. Mazzer Kony 전자는 입니다 요구"커피 그라인더는 커피가 땅에 있어야한다는 것을 의미합니다. 그래서 모든 에스프레소 당신은 신선한 지상 콩에서 만들 것입니다.
이 커피 그라인더는 각종 단상 유형에서 합니다. 가장 일반적인 유형은 220/240V 모형입니다. 다른 유형은 미국 시장을 위해, 100/110V 단일 위상 모형 만듭니다. 단일 위상 모터의 단점은 전기 용량으로 구동해야합니다. 축전기의 크기는 주로 전압 유형에 모터입니다 달려 있습니다.
Mazzer Kony 커피 그라인더는 평평한 가는 burrs 대신 원뿔 가는 burrs를 사용하는 Mazzer의 모형의 한개입니다. 이 가는 숫돌에는 2개의 외부와 2개의 내부 크기가 있습니다. 외부는 63이고 40mm는, 내부 크기 40와 12mm입니다. 이 숫자 사이 거리는 최고 시계 방향으로 반지를 돌고 시계 방향으로 조정될 수 있습니다.
지상 커피는 가는 단면도에서 깔때기 단면도로, 이 깔때기 단면도의 밑에 당신은 필터 홀더 포크가 있습니다. 당신이 원하는 커피의 종류를 선택할 수있는 터치패널 상단에. 단 하나 또는 두 배의 지상 커피를 위한 가는 초의 양을 놓을 수 있습니다.
This sticker is used on a variety of Mazzer coffee grinders. This sticker, which shows what the effects are of turning. If you turn the adjustment ring left is coarse and to the right this will be finer ground. So the space between the burrs to the left becomes bigger and to the right the distance between the burrs becomes smaller. This coarse fine...
How am I going to adjust the grind adjustment on my Mazzer coffee grinder? Well your burrs can be adjusted with the burr adjustment ring (SSJ0GHA02) this pin goes into the side of this ring in one of the 5 mounting holes. This specific adjustment pin screws into one of these 5 holes with a M5 thread. Note: if the ring doesn’t move because it is...
The sticker on this page basically says it all. It’s a Mazzer rotation sticker. The reason why they place this seen there are left and right turning motors. You do have also with a variety of brands where the motor spins the left way, like with Mazzer. But there are also brands which have a right turning motor. The blade design of the burrs for such...
On a variety of Mazzer coffee grinders you can find this grind adjustment spring. So, what does this spring do? Well, this spring supports the upper burr holder. So, when the burrs are set on the finest position, but you want to make them a bit coarser. You turn the grind setting adjustment ring outward. The springs will push the upper burr in its correct...
Almost every Mazzer coffee grinder has 4 individual feet to give it stability in harsh working environments. The feet are made up out of 2 parts. The feet itself. This is a rubber feet with a metal stud sticking out of it. This thread is a M5x0,75mm. The next part is the stainless steel cup which goes over the rubber feet. These feet are only sold per 4...
The switch on this page is a switch used in a variety of Mazzer coffee grinders. The Mazzer part reference for this switch is S000INA13. This selector switch has been made by the Italian company Bremas. The Bremas part references are CA0170002 and CA0170002V. This Bremas switch is rated up to 20A at 690V. The switch has 2 positions 0 and 1. The selector...
The item on this product page is a OEM/Original Mazzer spare part. This item is a reduction gear. The Mazzer part reference for this item is S000SAT01, S000SAT01/AQQ and S000SAT01/QQQ. This reduction gear has a outer diameter of 28mm. This reduction gear has in total 17 teeth. The item has been made in Italy. This reduction gear can be used on the...
The item on this product page is a hopper lid, this item is a OEM/original Mazzer spare part. This unit is used on various coffee grinders of Mazzer and Astoria. The Mazzer part references numbers for this item are S000COD01, S000COD01/AQQ and SMI0COD01. The Astoria part reference number is 28053. This hopper lid is made from a black plastic and has a...
On this page you will find the Mazzer burr adjustment ring. When you want a finer or coarser setting on your Mazzer burrs, you just need to turn this brass and threaded adjustment ring inward or outward. You can do this with the adjustment ring pin, with a m5 thread, which stick into the side of the burr adjustment ring(S00SPEA00) on various locations of...
The coffee collecting tray on this page is used on a variety of Mazzer coffee grinders. This item is a OEM/Original Mazzer spare part. The Mazzer part references for this item are SMJ0PIB02 and SSJ0PIB02. This coffee collecting tray has been made from pressed stainless steel. The tray has been made in Italy. You can use this stainless-steel tray on the...
The axial fan on this page is used on various Mazzer coffee grinders. The Mazzer part references for this item are S00SVEB01 and S00SVEB03. This axial fan is the EBM 612NGH. This fan is a 12Vdc 2,6W and runs at 5600rpdm. The outer dimensions are 60x60mm and the thickness is 25mm. This fan has been made in china. You can use this axial fan on the...
The item on this product page is a reduction gear for various Mazzer coffee grinders. The Mazzer part references for this item are S000COR01 and S000COR01/QQQ. This reduction gear has a outer diameter of 100mm. The gear has been made in Italy. You can use this reduction gear on the Doser and the Electronic versions of various Mazzer models such as...
The reduction gear on this page is a OEM/Original Mazzer spare part. The Mazzer part references for this item are S000PIR02, S000PIR02/AQQ and S000PIR02-A. This reduction gear has been made from brass. The outer diameter is 41mm. The gear has in total 25 teeth. The item has been made in Italy. This reduction gear can be used on the doser and electronic...
The filter holder fork on this page is used on a variety of Mazzer coffee grinders. This portafilter fork is a OEM/Original Mazzer spare part. The part references for this item are S000FOB14 and S000FOB14/QQQ. This filter holder fork has been made from stainless steel. The length of this item is 73mm. The fork has been made in Italy. You can use...
