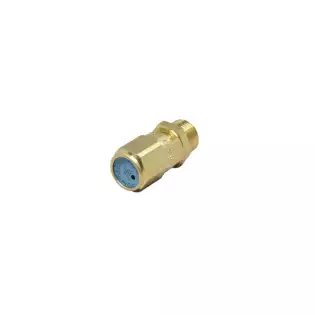

에스프레소 기계에 가장 중요한 부분은 안전 밸브입니다. 이 부분은 보일러가 폭발할 수 있다는 것을 막습니다. 보일러 안쪽의 압력이 너무 높을 때 안전 밸브가 열립니다. 이 특정한 안전 밸브는 고급장교에서 합니다. 이 안전 밸브에 사용되는 스레드 유형은 3/8 "BSP-G입니다. 벨브의 측정 압력은 2.0 막대기입니다, 이것은 조정될 수 없습니다. CE-PED 인증 밸브입니다. 내부 봄은 스테인리스로 만들고 이 벨브 안쪽에 사용된 바다표범 어업 물자는 FKM입니다. 밸브가 열릴 때 분당 증기의 969 L을 방전 할 수 있습니다. 이 페이지의 안전 밸브는 ECM, ECM Heidelberg 및 Grimac과 같은 다양한...
이 페이지에서 수 3/8” BSP-G 나사산이 있는 안전 밸브를 찾을 수 있습니다. 이 밸브의 사전 설정 압력은 1,8bar입니다. 직접 조정할 수 있지만 권장하지는 않습니다. 안전 밸브 내부의 스프링은 스테인리스 스틸로 만들어졌으며 밀봉재는 FKM입니다. 밸브는 이탈리아에서 제작되었습니다. 매년 안전 밸브를 교체할 것을 강력히 권장합니다. 저렴한 품목이지만 정말 중요합니다.
The boiler safety valve shown on this page can mainly be found on La Pavoni espresso machine boilers. The La Pavoni part reference for this item is 395221G This boiler safety valve has a male 3/8” BSP-G thread. The pre-set pressure is 1,8 bar and nonadjustable. The seal used is a FKM seal, when opened the steam outlet is 872 L/M. This valve is CE...
The boiler safety valve on this page can be found on older espresso machine models of La San Marco. There is for this part no la San Marco part reference number. This safety valve has a male M22 thread with a pitch of 1,5mm. The valve has been calibrated on 1,8bar. When the valve opens it can release up to 6,3 kg/h of steam. This valve is auto certified...
The item on this product page is a safety valve protective cover, if the safety valves opens this valve will drain the water coming out of the valve to the drain. This cover is a OEM/Original Astoria CMA spare part, so you can use this item on various espresso machine brands such as Astoria and Wega. The Astoria part reference number is 56009980 and...
The boiler safety valve on this page is a OEM/Original Bezzera spare part. This Bezzera OEM part has the part numbers 5471501 and 5264008. For the complete list check the extra info tab. This boiler safety valve has a male ½” BSP-G thread. This valve has been calibrated on 1,65bar. The valve has been CE certified. You can use this...
The boiler safety valve on this page can be found on various models of Brasilia. The Brasilia part reference for this item is 12611.4.00.09 This safety valve has a male 3/8” thread. It has been calibrated at 1,6 bar. The seal used on this valve is made from FKM, the steam outlet of this valve is 77kg/h. The operating limits are -20 degree up...
On this product page you will find a OEM/original safety valve protector for various La Carimali espresso machines. The Carimali part reference for this item is 37.00865 This protector slides over the safety valve. When the safety valve opens, all the water coming out of that valve is drained true the side connector. This protector has been made in...
The boiler safety valve on this page can be found on various models of La Carimali. The La Carimali part reference number for this item is 97.00148 . This safety valve has a male 3/8” thread. This valve has been calibrated on 1,9 bar. The seal inside the valve is made from FKM, when this opens there will flow out 87 kg/h of steam. The operating...
The boiler safety valve shown on this page can be used on wide selection of espresso brands such as Brasilia, Wega, Astoria, Grimac, Cimbali, Faema, Marzocco and Carimali. The part references can be found on the extra info tab. This boiler safety valve has a male 3/8” BSP-G thread. The safety valve has been set at 1,8 bar, this is not adjustable....
The boiler safety valve shown on this product page is used on various older La San Marco espresso machines. The part reference of La San Marco for this item is 205426. This safety valve has a male metric thread of M18 with a pitch of 1,5mm. The boiler safety valve has been calibrated on a pressure of 1,8 bar. It is capable to release 6,3 KG/H of steam....
The boiler safety valve on this page can be used on various Elektra espresso machine models. This safety valve is compatible with the Elektra part reference number 03199034 This boiler safety valve has a male 3/8” BSP-G thread. The safety valve has been calibrated at 1,5bar. This boiler valve is sealed off with a FKM seal. When this valve opens the...
The boiler safety valve is used on a variety of espresso machine brands such as San Marco, La Scala, Nuova Simonelli, Victoria Arduino and Gaggia. The Gaggia part reference for this item is WGADM1380/003, the Nuova Simonelli part references are 98013001, 98013000 and 98013022. For San Marco the references are 205426 and CSCSIC0020. The Victoria...
The boiler safety valve shown on this page can be used with various espresso machine brands such as San Remo and Rancilio. The San Remo part reference is 10652010 and the Rancilio part reference is 10060514 This boiler safety valve has a male 3/8” BSP-G thread. The pre-set pressure is 1,8 bar and nonadjustable. The working limits go to -20 degree...
