The product on this page is a solenoid valve connector, large F fitting. With this connector you can seal off and connect your wiring and solenoid valve to each other. These connectors can be used on all types of standard solenoid valve coils. Where the positive and negative are spaced apart approx. 17mm. This solenoid valve connector can be basically...
The product on this page is a Allen head screw for attaching a solenoid valve to a other surface. This type is a M4x10mm. It is a stainless-steel bolt according to UNI 5931 - DIN 912 - ISO 4762 You will only need this type of Allen head screw to attach the flanged solenoid valves to a flat surface. This type of Allen screw is used in a lot of espresso...
This o ring is one of the most common parts in the world of espresso machines. The main function of this o ring is to seal off a flanged solenoid valve. Every flanged solenoid valve uses 2 of these. But you will also find them in applications like steam and water valves and water inlet taps. The o ring has a wire diameter of 1,78mm and a internal...

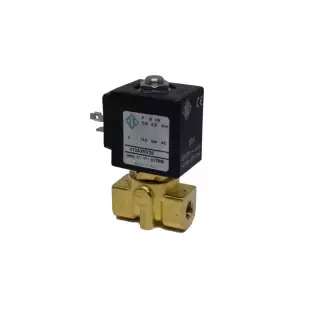

이 페이지에서 이탈리아 회사 ODE가 만든 솔레노이드 밸브를 찾을 수 있습니다. 솔레노이드 벨브는 2 방법 솔레노이드 벨브입니다. 연결은 여성 형태로 1⁄4 "BSP입니다. 이 솔레노이드 벨브에 오리피스는 1,5mm입니다. 최대 작동 압력은 30 bar입니다. 이 솔레노이드 벨브의 온도 편차는 -10°C까지 140°C입니다. 이 솔레노이드 벨브에 사용된 코일은 50/60Hz를 가진 220/230V 버전인 8W BDA08223DS입니다. 어떤 종류의 에스프레소 기계는이 2 방법 솔레노이드 밸브를 찾을 수 있습니까? 이 범위에서 Gaggia 사이트맵 1197/220/5060년, Nuova Simonelli 04100029, 사에코...
이 페이지에서 당신은 이탈리아 제조 3 방법 솔레노이드 밸브를 찾을 수 있습니다. 이 특정한 벨브는 이탈리아에 있는 ODE에 의해, ODE 벨브를 위한 부품 번호 31A3AV15입니다. 이 특정한 모형은 부품 번호 L100/E와 더불어 La Marzocco brewing 그룹의 다양성에, 사용될 수 있습니다. 이 페이지에 솔레노이드 벨브에는 1/8" BSP인 in와 출구 이음쇠가 있습니다. 배기 포트뿐만 아니라 1/8 "BSP입니다. 금관 악기 주거에 있는 오리엔날에는 1,5mm의 직경이 있습니다. 최대 작동 온도는 섭씨 10도에서 140도까지 배열합니다. 최대 일 압력은 15bar입니다. 이 솔레노이드 벨브에 사용된 코일은...
펌프 구동 에스프레소 기계의 대부분은 3 방법 솔레노이드 밸브를 사용하여 양조 공정을 제어합니다. 이 페이지에서 이탈리아 회사 ODE가 만든 ODE 솔레노이드 밸브를 찾을 수 있습니다. 솔레노이드 벨브 수는: 31A1AR15 밸브 이 특정한 모형은 flanged 모형입니다. 따라서 4개의 알렌 놀이쇠를 가진 편평한 기계로 가공한 표면에 대하여 도망됩니다. 이 표면은 2 o 반지, 인레트 항구에 하나 및 출구에 다른 사람 떨어져 항해합니다. Exchaust 물에 대 한 가늘게 한 1/8" 솔레노이드 밸브의 상단에 BSP 피팅. 이 솔레노이드 벨브 안쪽에 orifice는 1,5mm입니다 이 솔레노이드 벨브에 사용된 코일은...
이 페이지에서 이탈리아 제조업체 ODE가 만든 110V 3 방법 솔레노이드 밸브를 찾을 수 있습니다. 이 특정 모델 31A1AR15는 이탈리아에서 합니다. 이 모형은 플랜지 솔레노이드 벨브입니다. 따라서 그것은 편평한 표면에 대하여 4개의 알렌 놀이쇠로 도망되고 바닥에 2 o 반지의 밀봉됩니다. 솔레노이드 벨브의 금관 악기 몸에서, 당신은 1,5mm의 오리피스를 찾아낼 것입니다. 배기 포트에는 1/8 "BSP와 원뿔 피팅이 있습니다. 이 벨브의 최대 일 압력은 15bar입니다. 3가지 방법 솔레노이드 벨브의 작동 온도는 섭씨 180도까지 -40도 C에서 도달합니다. 특정한 모형 솔레노이드 벨브에는 코일의 부분 수를 가진...
On this page you will find a ODE 2 way solenoid valve used as water inlet valve for NS and VA espresso machines. This ODE 2 way solenoid valve has the part number 21A2K0R25-XC This specific valve is a 2 way inlet water valve. It has on both sides ¼” BSP female threads. The orifice inside the valve has a diameter of 2,5mm. The sealing...
The solenoid valve on this product page is one made by the Italian company ODE. This solenoid valve can be used on various Vibiemme (VBM) water inlet valves. The Vibiemme part reference number is ELETELE2VAU22. This Solenoid valve is a 2 way valve. Both the in and outlet side have a 1/8” BSP-G thread. The diameter of the orifice is 1,5mm. The seal...
The use of brass as the base of a solenoid valve is the standard. But the company ODE now also manufactures the bases from the techno polymer PPS. This 2 way solenoid valve is a flange model. This flange is bolted against a other machined flat surface and is sealed with 2 o rings. 1 for the inlet and the other one for the outlet. The orifice which lets...
The Italian solenoid manufacturer ODE is currently the only espresso machine solenoid manufacturer who makes some of their solenoid from the Techno polymer PPS. On this page you see a 3 way solenoid valve made from PPS with the part number 31APBA1R15-13T0 As mentioned before this is a 3 way solenoid valve with a flange. This flange mates against a other...
In the world of espresso machines ODE is the only manufacturer who uses the techno polymer PPS. This specific model is a 2 way solenoid valve made by the Italian company ODE and has the part number 21APBK1R15-RPT0 The 2 way solenoid valve you see on this page is a flange model, this model is bolted to a other flat surface and is sealed off at the bottom...
On this page you will find a 2 way solenoid a ODE solenoid valve. This valve is made by ODE in Italy, the part number of this item is: 21JN1R0V23-TS This 2 way solenoid valve has a in and outlet, they are both 1/8” BSP. The orifice in the solenoid valve has a diameter of 2,3mm and is in it’s closed position sealed of with a FKM seal. The body...
On this page you will find a 2 way solenoid a ODE solenoid valve. This valve is made by ODE in Italy, the part number of this item is: 21JN1R0V23-TS This 2 way solenoid valve has a in and outlet, they are both 1/8” BSP. The orifice in the solenoid valve has a diameter of 2,3mm and is in it’s closed position sealed of with a FKM seal. The body...
The solenoid valve on this page has been manufactured by the Italian company ODE. The valve on this page is a 2 way solenoid valve with the ODE part number 21JN1R0V23. The solenoid valve is a 2 way valve. The in and outlet of this valve has a 1/8” BSP thread. The orifice in the solenoid valve has a diameter of 2,3mm and is sealed of with a FKM...
The solenoid valve on this page is a product made by ODE. In this case it is a 2 way solenoid valve with the part number 212A3KV30. As mentioned this solenoid valve is a 2 way valve. The in and outlet on this valve are both 1/8” BSP female. In the body of the solenoid valve is a orifice located with the diameter of 3mm. So seal this off there is a...
This model of solenoid valve is quite a common design and used with a variety of espresso machine manufacturers. This specific solenoid valve is made by the Italian company ODE. But the difference is that this item is made from a Technopolymer PPS. The part number for this item is 21APBK1R15-RPT0 The specific item is a 3 way solenoid valve with a base...
The item on this product page is a solenoid valve made by the Italian company ODE. The ODE part reference number for this item is 21AP1K1V25-T0+... . This solenoid valve can be used on various espresso machine brands such as Cimbali and Faema. The Cimbali part reference number is 533-895-100R and for Faema 533895100R. This model of solenoid valve is...
