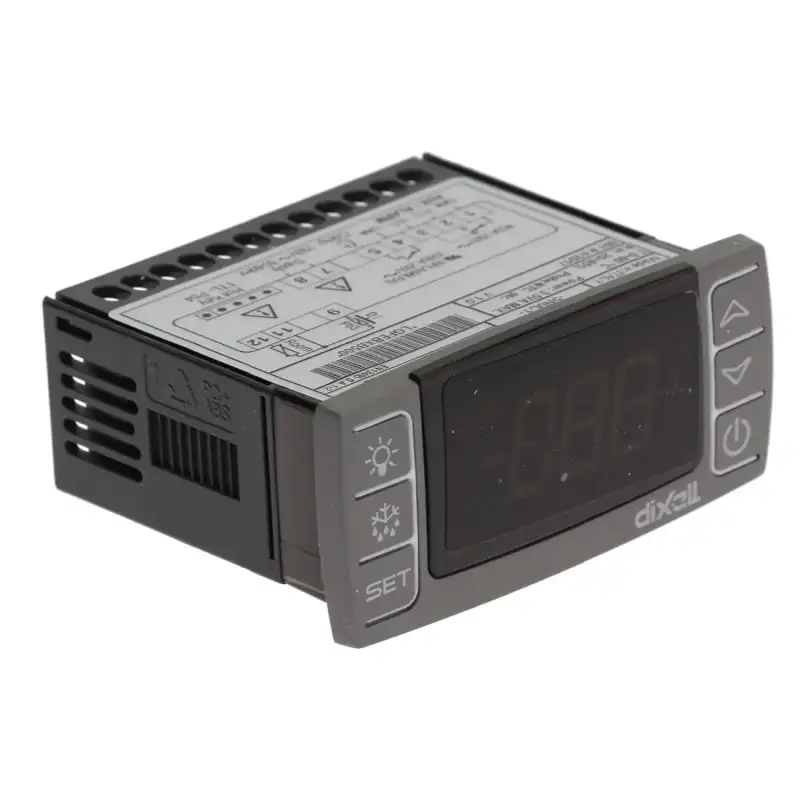

Controller DIXELL XR30CX‑5N0C1

The CONTROLLER DIXELL XR30CX‑5N0C1 from Brooks‑Parts is engineered for precision and reliability in commercial refrigeration and HVAC systems. Operating at 230V 50/60Hz, this digital controller delivers comprehensive control with its versatile features.

Key Features

• Power & Operation:
  • 230V 50/60Hz operation
  • ON-OFF control with one actuation point (pause defrosting)
• Relay Outputs:
  • 1 relay output at 20A for compressor control
  • 1 relay output at 8A for alarm signaling
• Input Options:
  • 1 configurable digital input (clean contact)
  • Selectable sensor input for NTC/PTC probes (probe not included)
• Connectivity:
  • Hot Key/TTL serial output for programming and external communication
• Installation:
  • Front panel dimensions: 78 x 37 x 60 mm
  • Drilling template: 71 x 29 mm
• Product Codes:
  • LGFEBXB500
  • LGFEBXB500‑S00
  • X0LGFEBXB500‑S00

Overview

Upgrade your refrigeration or HVAC system with the CONTROLLER DIXELL XR30CX‑5N0C1 from Brooks‑Parts. With its robust 20A relay for compressor control, advanced digital input features, and efficient pause defrosting, this controller delivers optimal performance and seamless integration in demanding commercial environments.
