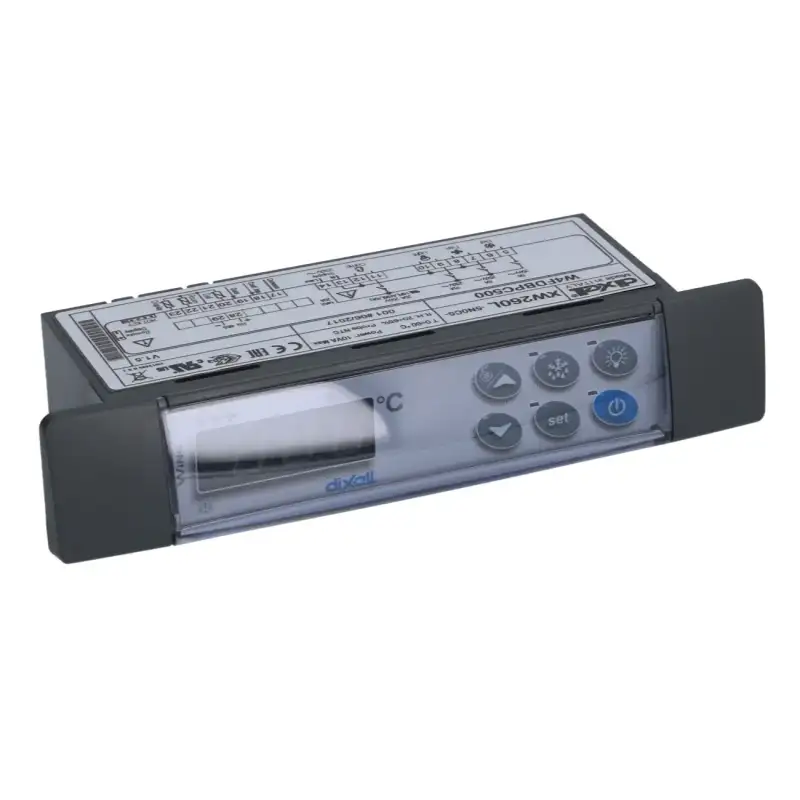

Controller DIXELL XW260L‑5N0C5

The CONTROLLER DIXELL XW260L‑5N0C5 from Brooks‑Parts is a reliable replacement controller engineered for commercial refrigeration and HVAC systems. Operating at 230V 50/60Hz with a depth of 76 mm, it restores your system’s original performance with advanced control features.

Key Features

• Relay Outputs:
  • 1 relay output at 20A for compressor control (faston 6.3 mm)
  • 1 relay output at 8A for defrosting
  • 1 relay output at 8A for evaporator fans
  • 1 relay output at 16A for light circuits
• Input Options:
  • Supports 3 NTC/PTC probe inputs (probes not included)
  • 1 micro‑port digital input
  • 1 configurable digital input (clean contact)
• Connectivity:
  • Hot Key/TTL serial output for remote display (X‑REP)
  • TTL RS485 serial output for communication
• Installation:
  • Front panel dimensions: 185 × 38 mm
  • Drilling template: 150 × 31 mm
  • Overall depth: 76 mm
• Product Codes:
  • X0W5FDBNC500‑S00

Overview

Replace your existing controller with the CONTROLLER DIXELL XW260L‑5N0C5 from Brooks‑Parts to restore reliable, precise control in your commercial refrigeration or HVAC system. Its advanced relay outputs, versatile digital input options, and robust connectivity ensure optimal system performance.
