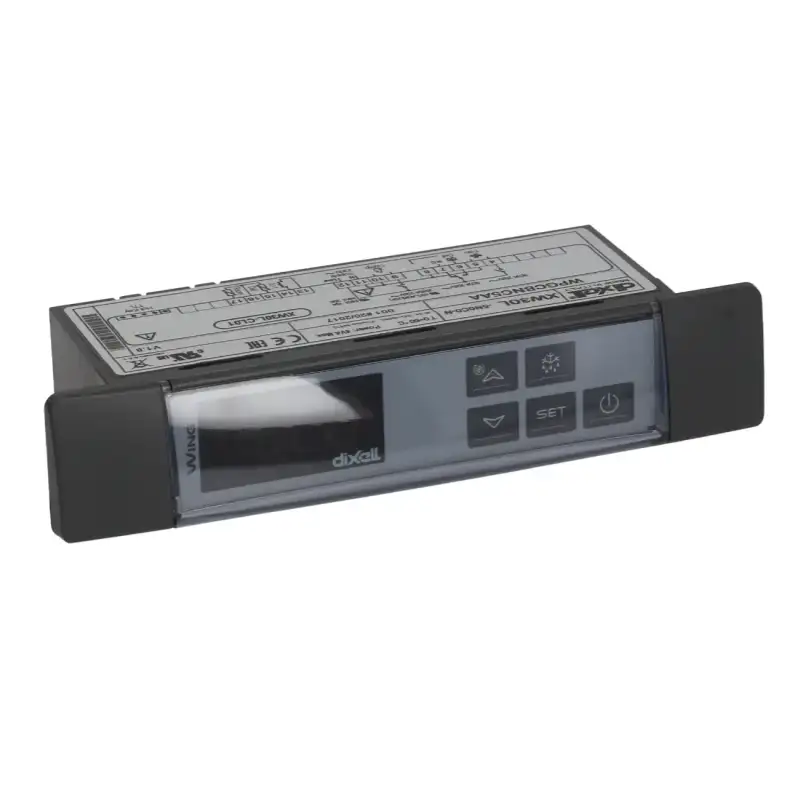

Controller DIXELL XW30L‑5N0C0‑N

The CONTROLLER DIXELL XW30L‑5N0C0‑N from Brooks‑Parts is a dependable replacement controller engineered for commercial refrigeration and HVAC systems. Operating at 230V 50/60Hz with a compact depth of 65 mm, it delivers the reliable control your system demands.

Key Features

• Relay Outputs:
  • 1 relay output at 20A for compressor control (faston 6.3 mm)
  • 1 relay output at 8A for defrosting (faston 6.3 mm)
  • 1 relay output at 8A for fans (faston 6.3 mm)
• Input Options:
  • 2 selectable NTC probe inputs (probes not included, faston 2.8 mm)
  • 1 configurable digital input (clean contact)
• Installation:
  • Front panel dimensions: 185 × 38 mm
  • Drilling template: 150 × 31 mm
• Connectivity:
  • Hot Key/TTL serial output for programming and external communication

Overview

Replace your existing controller with the CONTROLLER DIXELL XW30L‑5N0C0‑N from Brooks‑Parts to ensure precise control, energy efficiency, and reliable performance in your commercial refrigeration or HVAC system.
