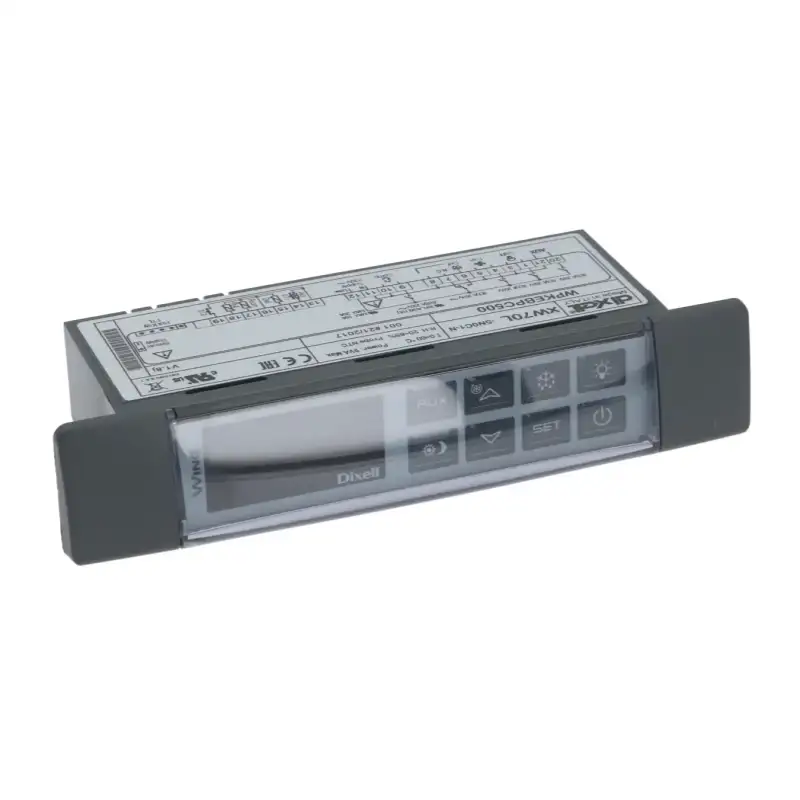

Controller DIXELL XW70L‑5N0C1

The CONTROLLER DIXELL XW70L‑5N0C1 from Brooks‑Parts is a dependable replacement controller designed for commercial refrigeration and HVAC systems operating at 230V 50/60Hz. This unit features a compact design with a depth of 76 mm and mounts on a front panel of 185×38 mm using a drilling template of 150×31 mm.

Key Features

• Relay Outputs:
  • 1 relay output at 20A for compressor control
  • 1 relay output at 8A for defrosting
  • 1 relay output at 8A for fans
  • 1 relay output at 8A for light circuits
  • 1 relay output at 8A for aux/alarm
• Input Options:
  • 3 NTC/PTC probe inputs (probes not included)
  • 2 configurable digital inputs
• Connectivity:
  • X‑REP output for remote display and programming
• Installation:
  • Front panel dimensions: 185 × 38 mm
  • Drilling template: 150 × 31 mm
  • Unit depth: 76 mm

Overview

Replace your current controller with the CONTROLLER DIXELL XW70L‑5N0C1 from Brooks‑Parts to achieve precise and reliable control in your commercial refrigeration or HVAC system.
