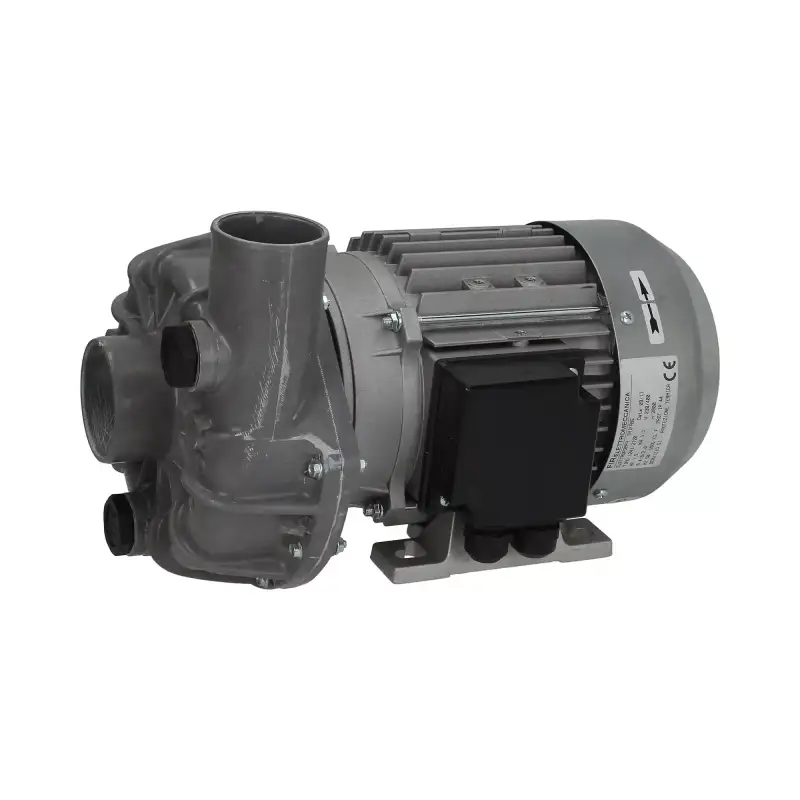

FIR 1241RH Electric Pump 1.50 HP 1241.2720

FIR Elettromeccanica 1241RH electric pump for commercial dishwashers and utensil washing machines. This pump has a power rating of 1.50 HP / 1.10 kW and is commonly replaced when the original pump is leaking, noisy, seized, electrically defective, or no longer circulating water correctly.

Product details

• Brand: FIR Elettromeccanica
• Part type: Electric pump
• Model: 1241RH
• Reference: 1241.2720 / 1241.2700
• Compatible with Winterhalter part number: 3102411
• Power: 1.50 HP / 1.10 kW
• Voltage: 230/400 V
• Frequency: 50 Hz
• Current: 4.8/2.8 A
• Speed: 2800 rpm
• Inlet external diameter: 63 mm
• Outlet external diameter: 54 mm
• Made in: Italy

Compatibility

Suitable as a compatible replacement for selected Winterhalter dishwashers, including:

• GM170 (199805-)
• GM85 (199805-)
• GS10 (199808-)
• GS10 (200407-)
• GS10-2 (200407-)
• GS10-2 (200802-)
• GS10-2 (201308-)
• GS12 (200407-)
• GS12 (200802-)
• GS12 (201308-)
• GS22 (199808-)
• GS22 (200407-)
• GS32 (199808-)
• GS32 (200407-)
• GS61 (200407-)
• GS61 (200811-Vers1)
• GS7 (200407-)
• GS9 (199808-)
• GS9 (200407-)

Suitable as a compatible replacement for selected Winterhalter pan/utensilwashing machines, including:

• GM170 (201109-)
• GM85 (201109-)

Suitable as a compatible replacement for selected Winterhalter conveyor type pan/utensilwashing machines, including:

• GS40 (200407-)
• GS40 (200811-Vers1)
• GS40 (200811-Vers2)
• GS405 (200407-Vers1)
• GS405 (200407-Vers2)
• GS41 (200407-Vers1)
• GS41 (200407-Vers2)
• GS41 (200501-)
• GS41-1 (200103-)
• GS41-3 (200407-)
• GS41-3 (200410-)
• GS41-4 (200103-)
• GS41-4 (20041206-)
• GS41-4 (20050816-)
• GS41-4 (20080731-)
• GS41-4 (20180103-)
• GS41-4S (200103-)
• GS41-4S (20041206-)
• GS41-4S (20050816-)
• GS41-4S (20080731-)
• GS41-4S (20180103-)
• GS41-5 (200010-)
• GS41-5 (20041026-)
• GS41-5 (20080801-)
• GS41-5 (20100319-)
• GS42 (200010-)
• GS42 (20031023-)
• GS42 (20041027-)
• GS42 (20080129-)
• GS42 (20100319-)
• GS501 (20031112-)
• GS501 (20050504-)
• GS501 (20060804-)
• GS502 (20031112-)
• GS502 (20050504-)
• GS502 (20060804-)
• GS502 (20090213-)
• GS502 (20180103-)
• GS515 (20031112-)
• GS515 (20050504-)
• GS515 (20060804-)
• GS515 (20090213-)
• GS515 (20180103-)
• GS70 (200407-)
• GS70 (200811-Vers1)
• GS71 (200407-Vers1)
• KTS1900 (199708-)
• KTS1900 (200407-)
• KTS1900 (200604-Vers1)
• KTS2400 (199708-)
• KTS2400 (200407-)
• KTS2400 (200604-Vers1)
• KTS2400 (200604-Vers2)
• MTF (20060713-)
• MTF (200801-)
• MTF (20080114-)
• MTF (20180103-)
• MTR (200605-)
• MTR (20060505-)
• MTR (20080114-)
• MTR (20170427-)
• STR (200711-)
• STR (20081215-)
• STR (20180103-)
• WBA (200103-Vers2)
• WKT1200 (20060807-)
• WKT1200 (200801-)
• WKT1200 (20081215-)
• WKT1200 (20180103-)
• WKTS (20040112-)
• WKTS (20080220-)
• WKTS (20170427-)
• WKTS-WZN1500 (199905-Vers2)
• WKTS-WZN-Zone
