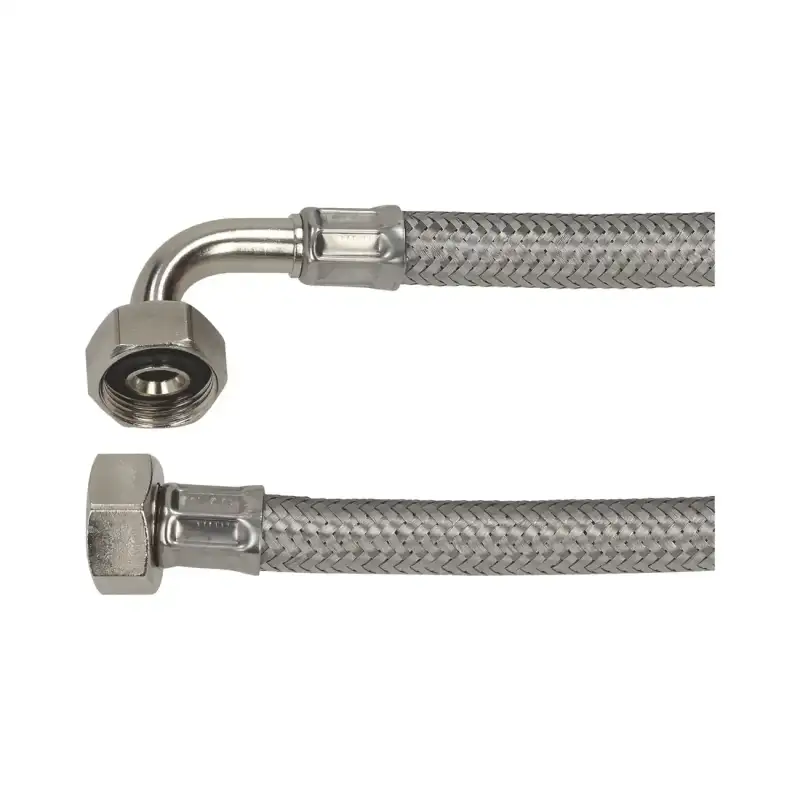

Flex Hose ¾″ Fp×CFp 1000 mm – EPDM Stainless Steel

€19.11

Tax included

€15.79 tax excl.

Calculate Shipping Cost

GDPR Compliance

Protecting your personal data

Shipping policy

Everything about shipping your order

Return policy

all the inns and outs about our return policy

Description

Premium Italian-made flex hose featuring a durable EPDM inner tube covered in stainless-steel braid. Designed for high performance and longevity in professional coffee and laundry equipment.

Technical Specifications

Length: 1000 mm
Connections: ¾″ female pipe (Fp) × ¾″ connector female pipe (CFp)
Hose ID/OD: DN 13 (Ø 12.5 × 17 mm)
Material: EPDM inner tube, stainless-steel braid
Max. Temperature: 90 °C
Max. Pressure: 20 bar
Approval: WRAS certified
Origin: Made in Italy

Compatible Equipment

Cimbali: M39-GT
Grimac: G11
Primus (washing machines): C6, C8, F6, F7, F10, F16, FS6, FS7, FS8, FS10, FS11, FS13, FS14, FS16, FS18, FS24, FS28, FX65, FX80, FX105, FX135, FX180, FX240, FX280, FXB180, FXB240, P6, P7, R16, R22, RS10, RS13, RS16, RS18, RS22, RS6, RS7, RX105, RX135, RX180, RX240, RX280
Scala: Carmen, Eroica, Iris, Norma, Tosca
Victoria Arduino: Adonis, Athena-Leva

Looking for similar items or different specifications for this Flex Hose ¾″ Fp×CFp 1000 mm – EPDM Stainless Steel?
Explore our full range in the Horeca, Flexible Hoses categories

* This part is compatible to the original part number. Part numbers are always leading.

Details

Reference 57-568-3449037

Data sheet

Type: Compatible (non-original)
