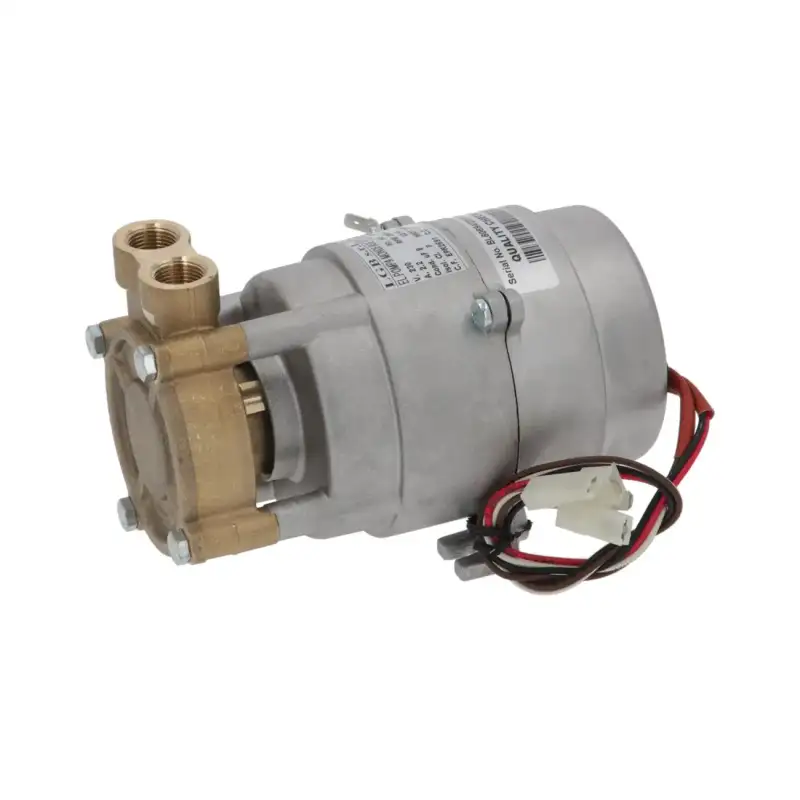

LGB PS45DX electric pump 0.40HP 230V

This electric pump is used for pressure increase in commercial dishwashers and utensil washing machines. It is replaced when the original pump no longer builds enough pressure or shows electrical or mechanical wear.

Product details

• Brand: LGB
• Part number: PS45DX
• Additional reference: EPR2691
• Product type: Electric pump
• Power: 0.40HP
• Power rating: 0.30kW
• Voltage: 230V
• Frequency: 50Hz
• Current: 2.2A
• Speed: 2800 rpm
• Capacitor: 8 µf
• Inlet connection: 3/8" F
• Outlet connection: 3/8" F
• Application: Pressure increase
• Made in Italy

Compatibility

Adler

Dishwasher hood type

• DS2000

Mach

Dishwasher

• MGL500
• MS500PPB
• MS800B
• MS800T
• MS9800
• MS9801
• MS9803

Dishwasher hood type

• MS1100P
• MS1300P

Pan/utensilwashing machines

• MLP50
• MLP56
• MLP60
• MLP60E

Zanussi

Dishwasher

• 400000 (LS32)
• 400001 (LS32/4.5)
• 400003 (LS32F)
• 400004 (LV32F)
• 400005 (C55)
• 400006 (LV32/60)
• 400010 (WT302)
• 400011 (WT302/4.5)
• 400013 (WT302F)
• 400014 (WT302/60)
• 400020 (LS33)
• 400021 (LS33/4.5)
• 400023 (LS33F)
• 400024 (LV33F)
• 400025 (C55A)
• 400026 (LS33/60)
• 400030 (WT303)
• 400031 (WT303/4.5)
• 400033 (WT303F)
• 400034 (WT303/60)
• 502000 (LS61)
• 502002 (LS61/60)
• 502100 (LS62)
• 502101 (LS62D)
• 502102 (LS62/UKRP)
• 502103 (LS62F)
• 502104 (LV62)
• 502106 (LS62/60)
• 502107 (ECOTEMP5)
• 502108 (LS62/1P)
• 502109 (LS62HD)
• 502200 (LS63)
• 502201 (LS63D)
• 502202 (LS63/UKRP)
• 502203 (LS63F)
• 502204 (LV63)
• 502206 (LS63/60)
• 502207 (LS63/1P)
• 502300 (LS64)
• 502301 (LS64/UKRP)
• 502302 (LV64)
• 502304 (ECOTEMP5S)
• 502305 (LS64/1P)
• 502308 (ECOTEMP5SW)
• 502400 (WT32)
• 502401 (WT32/4, 5)
• 502402 (WT32/UK)
• 502403 (WT32/UKRP)
• 502404 (WT32/F6)
• 502405 (WT32/J60)
• 502406 (WT32/J50)
• 502407 (WT32/4, 5N)
• 502500 (WT33)
• 502501 (WT33/4, 5)
• 502502 (WT33/UK)
• 502503 (WT33/UKRP)
• 502504 (WT33/F)
• 502505 (D500)
• 502508 (WT33/60)
• 502509 (WT33/4, 5N)
• 502600 (WT34)
• 502601 (WT34/4, 5)
• 502602 (WT34/UKRP)
• 502603 (D510)
• 502608 (WT34/4, 5N)
• 503000 (LS7D)
• 503001 (LS7)
• 503002 (LS7UK/RP)
• 503003 (LV70)
• 503004 (LS7F)
• 503005 (LS7DEK)
• 503006 (LS7/1UK)
• 503007 (LS7/9)
• 503008 (LS7/DP)
• 503009 (LS7/60)
• 503010 (WT40/9)
• 503011 (WT40/F)
• 503012 (LS7HD)
• 503013 (WT40/J50)
• 503014 (WT40/J60)
• 503015 (WT40UKRP)
• 503016 (PH4/WT40)
• 503017 (PH4RBP/WT40)
• 690000 (FL32)
• 690001 (FL32/4.5)
• 690002 (FL33)
• 690003 (FL33/4.5)
• 698000 (FL610)
• 698001 (FL620)
• 698002 (FL630)
• 698015 (FL700)
• 727000 (C32)
• 727001 (C32/4.5)
• 727002 (C33)
• 727003 (C33/4.5)
• 727015 (HYDRA700)
• 777010 (Z32)
• 777011 (Z32/4.5)
• 777012 (Z33)
• 777013 (Z33/4.5)
• 777301 (Z62)
• 777302 (Z63)
• 777303 (Z64)
• 777310 (Z70)

Dishwasher hood type

• 505000 (LS8D)
• 505001 (LS8)
• 505002 (LS8UK/RP)
• 505003 (LC80)
• 505004 (LS8F)
• 505005 (LS8DEK)
• 505006 (LS8/9)
• 505007 (LS8/60)
• 505008 (LS8/1UKRP)
• 505009 (LS8/DP)
• 505010 (WT50/9)
• 505011 (WT50/UK9RF)
• 505012 (WT50/F9)
• 505014 (WT50/6)
• 505015 (WT50/1UKRP)
• 505016 (WT50/1)
• 505017 (D800/9)
• 505018 (D800/6)
• 505019 (WT50/60)
• 505020 (WT50/N)
• 505021 (LS8/HD)
• 505023 (WT50/J50)
• 505024 (WT50/J60)
• 505026 (LS8/UK1)
• 505027 (LS8UK3)
• 505028 (WT50/UK1)
• 505029 (WT50/UK3)
• 505031 (LS8/9DD)
• 505037 (LS8DEK)
• 698025 (HT800)
• 727025 (HYDRA800)
• 777430 (Z80)

Glasswasher/Cupwasher

• 402000 (LB1)
• 402001 (LB1WS)
• 402002 (LB1WSDP)
• 402004 (LB1/RBP)
• 402005 (LB1/TOP)
• 402008 (LB1/60)
• 402010 (WT1WSDP)
• 402012 (LB2DPSAUS)
• 402013 (LB1G)
• 402014 (LB1WSG)
• 402015 (WT2TOP60)
• 402016 (WT2DPDI)
• 402017 (WT2WSDPDI)
• 402018 (LB1TOP)
• 402019 (WT2TOPDI)
• 402020 (LB2WS)
• 402021 (LB2)
• 402022 (LB2WSDP)
• 402024 (LB2/TOP)
• 402025 (LB2/RBP)
• 402028 (LB2WS60)
• 402030 (WT2WSDP)
• 402032 (WT2WSDPD)
• 402034 (LB2WSG)
• 402035 (WT2WS)
• 402041 (WT1)
• 402042 (WT1WS)
• 402043 (WT1TOP)
• 402044 (WT2TOP)
• 402046 (WT1/3DP)
• 402047 (WT2/3DP)
• 402048 (NGW2DPG)
• 402049 (NGW2WSDPG)
• 402050 (WT2DPAUS)
• 402059 (NGWP)
• 402060 (NGWDPDDP)
• 402061 (WT2)
• 402062 (LB2DPDI)
• 402063 (LB2WSDPDI)
• 402064 (LB2WSDPD)
• 402065 (LB2TOP)
• 402066 (LB2DP3)
• 402067 (WT2DPD3)
• 402068 (NGWGMS)
• 402069 (NGWDPDDG)
• 402070 (NGW)
• 402071 (NGWDPDD)
• 402072 (NGWDPRBP60)
• 402073 (NGWDD)
• 402074 (NGWDPDDTF)
• 402114 (EGWSI)
• 402115 (EGWSIGUK)
• 402116 (EGWSIG)
• 402117 (EGWSIDPBC6)
• 402118 (ZGWSI)
• 402119 (ZGWSIG)
• 402120 (NGWSIGUK)
• 402122 (NGWSIGFUK)
• 402133 (EGWSIC)
• 402134 (EGWSICW)
• 402135 (EGWSICWP)
• 402136 (EGWSICWG)
• 402137 (EGWSICWGU)
• 402138 (EGWSICWPB)
• 402139 (EGWSICP3)
• 402140 (EGWSDICG3)
• 402141 (EGWSICWPB6)
• 402142 (EGWSDICWGB)
• 402143 (EGWSICWGBU)
• 402144 (EGWSDICG)
• 402145 (EGWSDICWG)
• 402146 (ZGWSIC)
• 402147 (ZGWSICW)
• 402148 (ZGWSICWP)
• 402149 (ZGWSICWG)
• 402150 (ZGWSICWPB)
• 402151 (ZGWSDICG)
• 402152 (ZGWSDICWG)
• 402153 (NGWSICPU)
• 402154 (NGWSICWPU)
• 402155 (EGWSICGMS)
• 402156 (ZGWSICGMS)
• 402157 (XGWSICWP)
• 402158 (XGWSICWG)
• 402159 (XGWSICWG)
• 690015 (UC1)
• 690016 (UC2WS)
• 698200 (GW1)
• 698201 (GW1WS)
• 698202 (LV1WS)
• 698203 (LV1WSDP)
• 698204 (LV2WSDP)
• 698205 (LV2WS)
• 698206 (GW2DPG)
• 698207 (GW2WSDPG)
• 698208 (GW2G)
• 698209 (GW2WSG)
• 698210 (GW2WS)
• 698211 (GW2)
• 776601 (Z1)
• 776602 (Z1/WS)
• 776604 (Z1TOP)
• 776610 (Z2)
• 776612 (Z2TOP)
