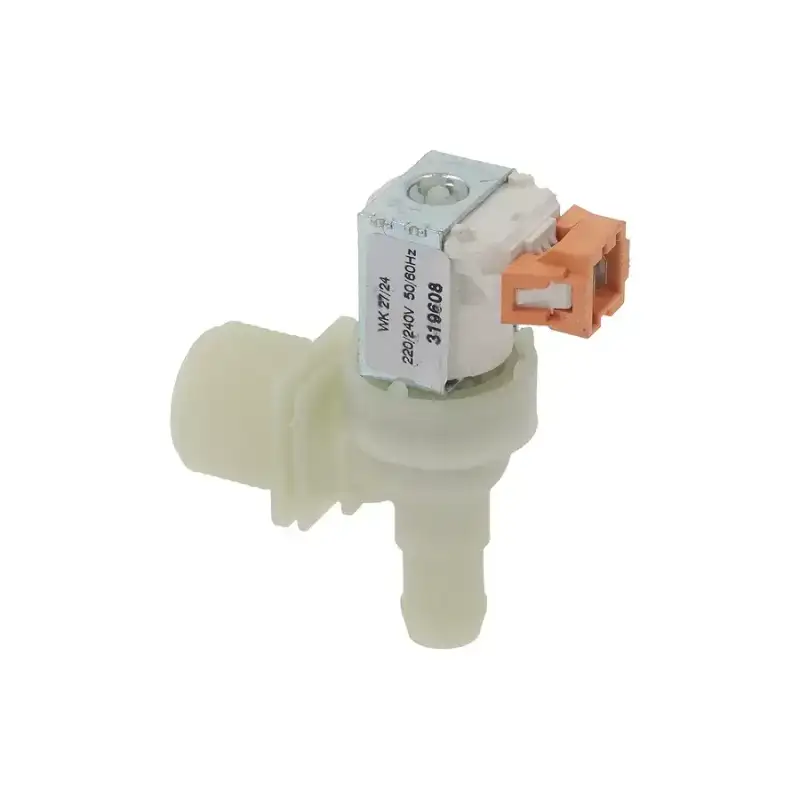

Solenoid Valve ELBI Type 319 1-Way 90°

This ELBI Type 319 solenoid valve is a 1-way valve with a 90° outlet, operating at 220/240V 50/60Hz. It supports a maximum temperature of 90°C, with an inlet size of 3/4" and an outlet diameter of 13.5 mm. This valve includes high durability and thermal resistance, making it ideal for commercial dishwashing environments. Made in Italy, it ensures excellent quality and reliability.

• Voltage: 220/240V 50/60Hz
• Max temperature: 90°C
• Inlet: 3/4"
• Outlet: Ø 13.5 mm
• Orientation: 1-way, 90° outlet
• Application: Solenoid control for water flow
• Material: High-grade plastic and brass fittings
• Origin: Made in Italy

Applications

This valve is primarily used in commercial dishwashers, particularly from Zanussi. It is found in undercounter dishwashers, hood-type models, and even in specialized installations like self-service counters.

Compatible with:

ZANUSSI

Dishwasher:
WT4 (400007), WT4B (400008), WT4D (400009), WT4DB (400015), WT46 (400016), NUC3DD (400041), WT4D60 (400042), WT4DDG (400043), EUC1 (400055), EUC1DP (400056), EUC3 (400059), EUC3DP (400061), EUC1G (400063), EUC1DP60 (400064), EUC3DD (400065), ZUCADDROW (400066), ZUCADDROW6 (400067), EUCADD60 (400068), LS5/1 (400100), LS5/1DP (400102), LS5/3 (400112), LS5/3DP (400113), FUCA3DD (400116), NUC1DPP (400120), NUC1DUK (400122), NUC1DDUK (400123), LS5/1DP60 (400124), LS5/1DPAUS (400125), LS5/1DPCS (400126), KUC3 (400127), KUC3DP (400128), NUC1DDRUKP (400130), NUCA1GRUK (400131), NUC1D (400133), NUC1DD (400134), EUCA1DP (400137), NUC1GMS (400138), EUC3DPCAG (400139), NUC1 (400140), NUC1DP (400141), NUC3 (400144), NUC3DP (400146), NUC1DP60 (400149), NUC1DPA (400150), ZUCA1 (400151), ZUCA3 (400152), EUCADDROW (400153), EUCADDROW6 (400154), NUC1DPDD (400155)

Dishwasher hood type:
LS10D (504000), LS10 (504001), LS10UKRP (504002), LC100 (504003), ECOTEMP12 (504004), LS10/60 (504005), LS10/1 (504006), LS10/12KW (504007), LS10F (504008), LS10DEK (504009), LS10/1UKRP (504010), LS10SW (504011), LS10/50J (504012), LS10/60J (504013), LS10DP (504014), LS10/HD (504015), LS10/UK1 (504018), LS10/UK3 (504019), LS12D (504020), LS12 (504021), LS12UK/RP (504022), LC120 (504023), LS12DP (504024), LS12/60 (504025), LS12F (504028), LS12DEK (504029), LS12HD (504053), LS12/UK3 (504061), ECOTEMP12SW (504063), ECOTEMP12INS (504065), LS12MEX (504078), LS10N (504080), LS8D (505000), LS8 (505001), LS8UK/RP (505002), LC80 (505003), LS8F (505004), LS8DEK (505005), LS8/9 (505006), LS8/60 (505007), LS8/1UKRP (505008), LS8/DP (505009), LS8/HD (505021), LS9P (505022), LS8/UK1 (505026), LS8UK3 (505027), LS8/9DD (505031), LS9PDD (505033), LS9AUK/3 (505034), LS9P60 (505035), LS8DEK (505037), WT55P (505038), WT55P60 (505039), WT55AUK/3 (505040), LS9ADG1 (505041), WT55ADG1 (505042), LS9PAUS (505043), WT55PM50 (505044), WT55PM60 (505045), H2500 (698008), HT1200elm (698020), HT1000elm (698021), HT900 (698022), LV900P (698023), LD900 (698024), HT800 (698025), HT900ADG1 (698028), HYDRA1200 (727020), HYDRA1000 (727021), HYDRA800 (727025)

Self service counter:
SSBMHC12 (330065), SSBMHC16 (330066), SSBMHC20 (330067), SSBMB12 (330069), SSBMB16 (330070), SSBMHB20 (330071), SSBMB8 (330245), SSBMHC8 (330256), DBMAC12 (331000), DBMAC16 (331001), DBMAC20 (331002), DBMP12 (331003), DBMP16 (331004), DBMP20 (331005), ZLB12H (332000), ZLB16H (332001), ZLB20H (332002), ZLB12B (332003), ZLB16B (332004), ZLB20B (332005), ZLB08B (332068), ZLB08H (332076)
