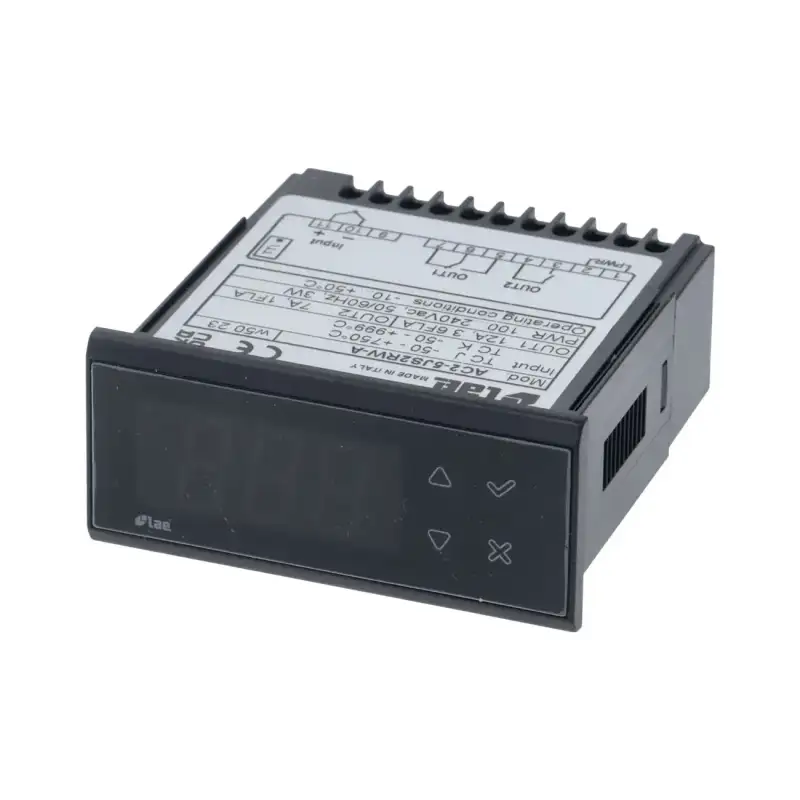

LAE AC2-5JS2RW-A Dual-Setpoint Rack Thermostat — TCJ/TCK Probe

The LAE AC2-5JS2RW-A Rack Thermostat combines precision and durability in a compact DIN-rail housing. Engineered in Italy by LAE Electronic, it delivers dual ON-OFF setpoints and a wide temperature range for diverse cooling and heating applications.

Key Features

• Power Supply: 115 V or 230 V, 50/60 Hz
• Probe Type: TCJ or TCK (not included)
• Temperature Range: –50 °C to 999 °C
• Relay Outputs:
  • Changeover 12 A (4 A inductive) at 250 V
  • Changeover 7 A (2 A inductive) at 250 V
• Mounting: 71×29 mm cut-out, screw-terminal block
• Front Dimensions: 77×35×74.5 mm (W×H×D)

Benefits

• Dual-setpoint control for precise temperature management
• Robust relay outputs suit both resistive and inductive loads
• Wide adjustment range covers freezing and high-heat needs
• Simple panel mounting with standard dimensions
