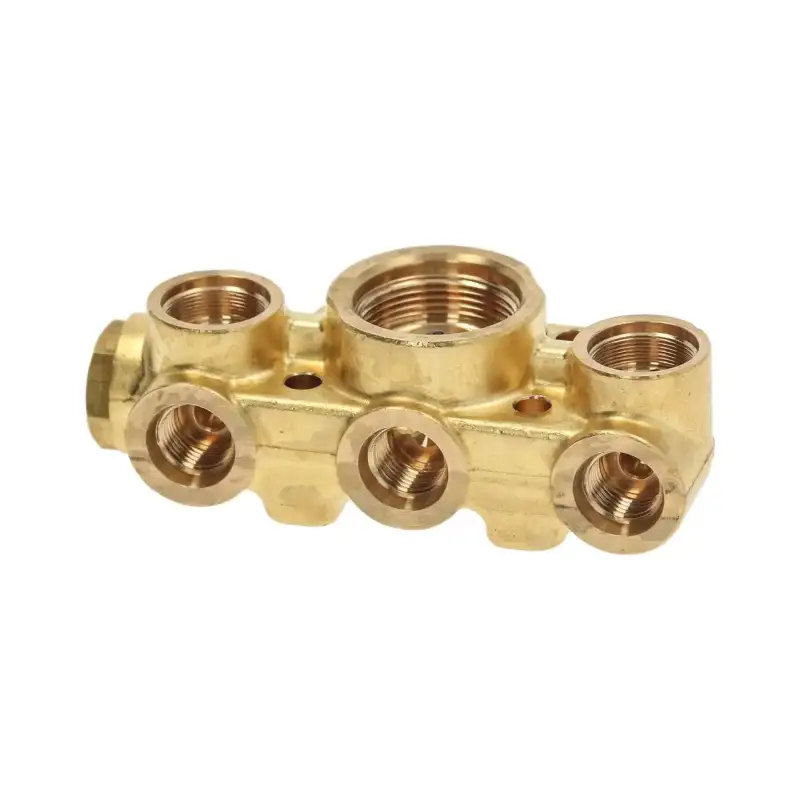

This high-quality brass lock is designed for use with 3 ODE solenoid valve assemblies, providing secure and reliable connections in vending applications. Manufactured from CW510L (OT57) low-lead brass, it offers enhanced safety for food and beverage machines.
For 3 ODE solenoid valves
Material: Brass CW510L (OT57), low lead
Robust and leak-proof design
Ideal for vending machines and beverage equipment
Compatibility:
Necta Vending Evoca models:
Korinto-ES-IN (201701-)
Korinto-Espresso-Instant (201507-)
Korinto-Prime-Espresso (201701-)
Korinto-Prime-Fresh-Milk (201701-)
Koro (201603-)
Koro-Espresso-Instant (201601-)
Koro-Prime-Espresso (201706-)
Koro-Prime-Espresso-Fresh-Milk (201706-)
Looking for similar items or different specifications for this Brass Lock 3 ODE Solenoid Valve for Necta Vending Evoca?
Explore our full range in the Horeca, Solenoid valves, Solenoid valve components categories
*
This part is compatible to the original part number. Part numbers are always leading.
